BC street suspension kit

There are various kinds of suspension kit available in the market with the roadster but few makers actually pay heed to the feature of car height adjustment.
The Maruha BC damper kit is suitable for the circuit users since it is equipped with the spring of F8 kg R6 kg.
This kind of effort is not required for normal street users since it is hard and does not give a smooth feel when driving through normal roads.
Keeping in mind the demand of the street users, Maruha Motors presents a new BC Damper Kit for the street exclusive use.
The new technology used is entirely Maruha Motors invention .The spring rate is 6 kg (The rate the fixation of Rear) and4 kg (The front) respectively.
The new suspension kit is smooth and the spring used is Maruha custom ordered to give the drivers the exact amount of comfort level performance.
Furthermore the suspension kit is cost effective and affordable.

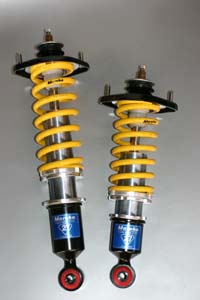

Characteristic of the BC Street Damper
  1. Standard car height, although it is a little lower than the standard,it is able to correspond firmly to car
  2. The car high adjustment is convenient with the coil overcoat method .It is easily adjustable and comes with exclusive use tool kit.
  3. The optimal car height can be achieved by the exclusive height adjustment styles
  4. The stroke quantity is secured firmly and the decrease in the spring power raises the grip impression specifically in the streets.
  5. All round performance is increased.
  6. We adopt NB style standard upper mounting.
  7. We enabled O/H so that it is able to correspond to after maintenance
  8. It is cost effective.

1.Spring Setting


Sticking between the lines at the time of a full temptress was complication while using the standard spring.
Therefore Maruha custom ordered the spring from the manufacturers, best for soft street specification .
The spring is 6 kg and can be used conveniently.

Flexibility is achieved by using soft spring and by decreasing the spring whirl rate.
The spring line diameter is reduced so as to be able to take the load effectively.
Maruha custom ordered spring is safe and comes with Maruha logo on it.

The technology is designed by Maruha and the spring rate is 6 kg (The rate the fixation of Rear) and4 kg (The front) respectively.

2.Car height adjustment

Car height adjustment in an important factor in street drive.
The coil overcoat method cuts the screw into the main body and car height adjustment is made easy.

It adjusts the car height by using the wrench of the kit.
Though the C - ring method seems to be easy it is a bit of hassle to refit it after installation.

3. The height adjustment styles

Bottom wear bracket at the lower part of suspension is designed as a screw style.
Car height can be adjusted by unscrewing and screwing the bottom end section.
An effective stroke is secured by using the bottom wear bracket.

Aiming at strength and life, the bottom bracket is durable and made of urethane rubber.

4.NB Style Upper mount

By Adopting NB style upper mount the pressure from bottom is restrained.
The pure part allows us to achieve high performance in the streets.

Also it is coated with aluminum in the lower part and the spring is fixed strongly by using exclusive use aluminum upper sheet.

5.15 steps decrease adjustment


The adjustment of wide 15 step clicks is designed by Maruha, keeping in mind various factors of street use.
The relatively soft spring free use can increase the span of adjustable range, grip the radial tire to the road surface securely even in foul weather.

6.Main body

In comparison with, a conventional BC dumper case diameter is a little thinner.

Though different from the BC damper the Street Damper prides in its street performance.
The shaft used is the same as in the BC Damper.
Also the plating process and rust correspondence absolutely remains the same.

7.After service

Maruha BC Street overhaul is of course possible. We ask you to use it for long and maintain its performance with the overhaul.
This assures long life to the suspension.
The after sales service is cost effective with Maruha.

8.A complete order maid

The BC Street is manufactured with special order in the factory like the BC damper. The production lead time is approximately 3 months. We would appreciate advance stock confirmation.
For further enquiries please mail us at info@Maruhamotors.co.jp
